INTERLOCK (IL)

This is a purpose of Interlock Instruction all outputs between IL(002) and ILC(003) when the execution condition for IL(002) is OFF. IL(002) and ILC(003) are normally used in pairs

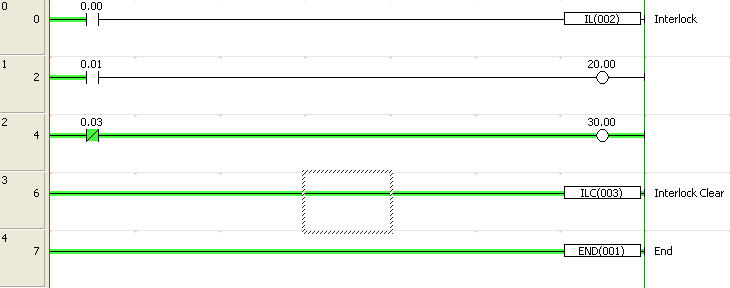

Example for use IL

 This is example how this software is work we have the condition
before IL instruction if bite control before IL not On they will make
the ladder in side between IL and ILC not working also if bite
control before IL is On output 20.00 will on also
