Move Digit

                              Move Digit

This Instruction MOVD(083) copies the contents of n digits from S to D. Only the specified digits are changed; the rest are left unchanged.If the number of digits being read or written exceeds the leftmost digit of S or D, MOVD(083) will wrap to the rightmost digit of the same word.

C:Control Word

Example for use MOVD

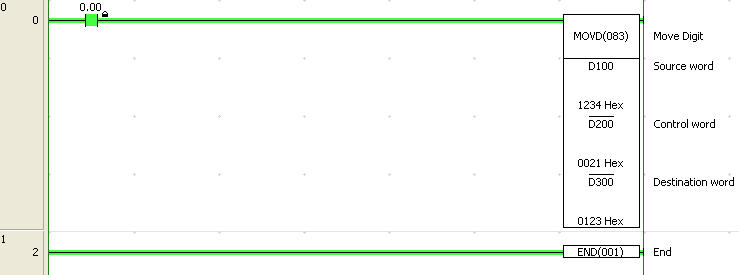

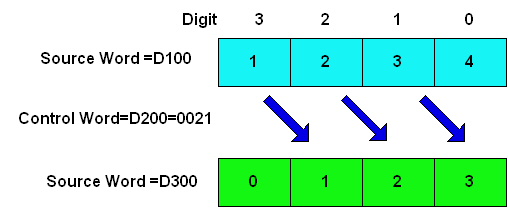

This sample if you want to copy data from Source word Dm 100
to D300 by have D200 for control word we can write ladder like this
